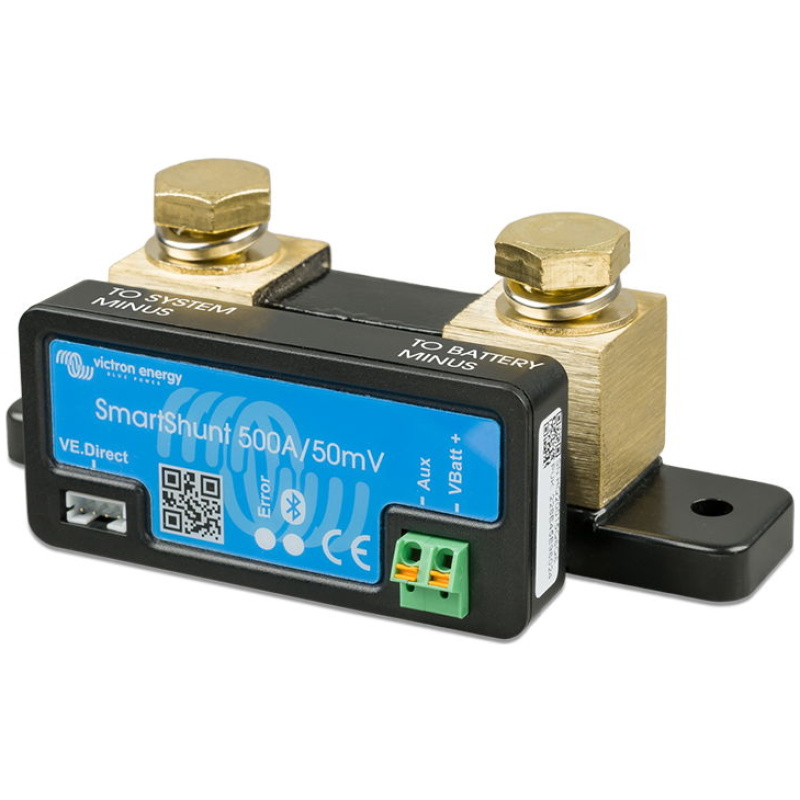

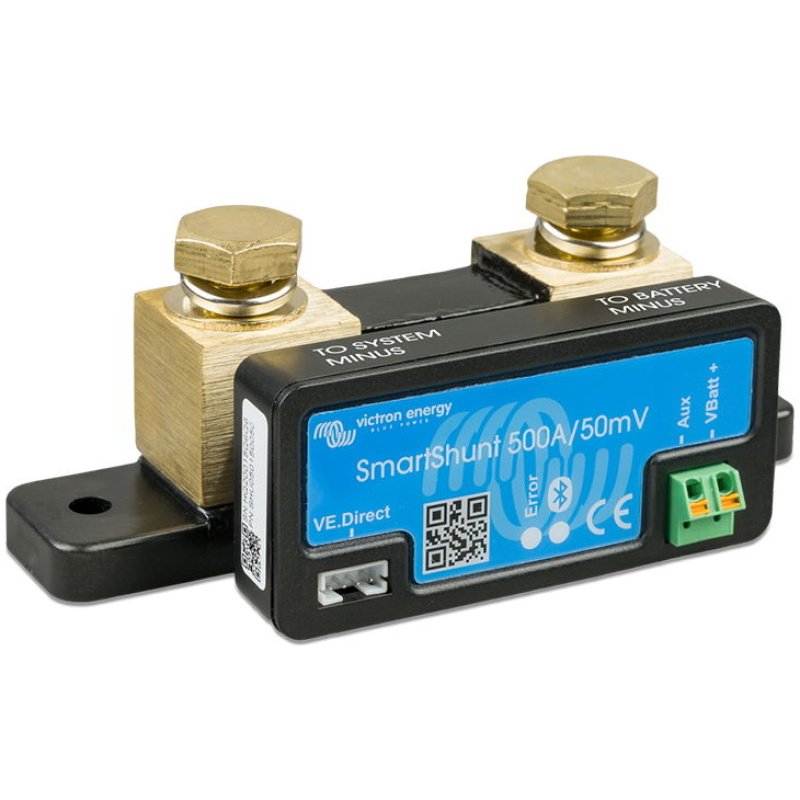

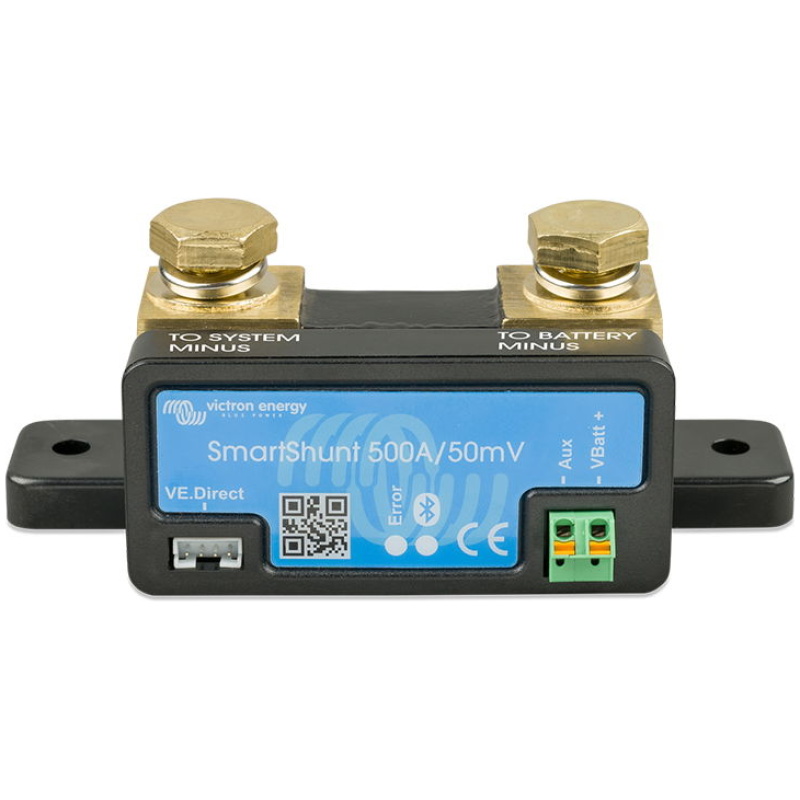

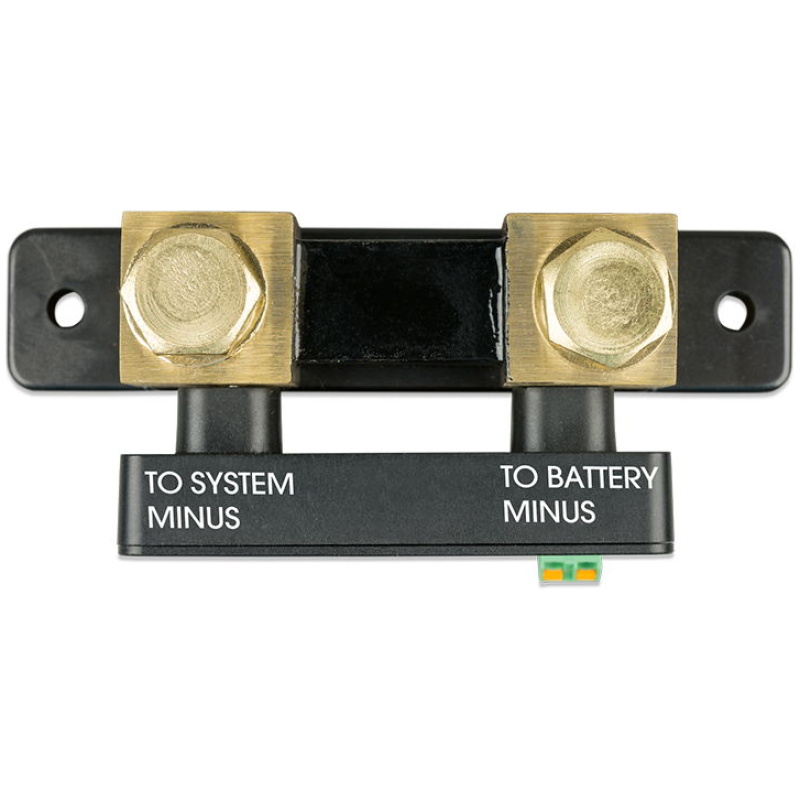

Victron Energy SmartShunt 500A IP65 battery monitor

Pay in three equal instalments 3 x 39.00 €

Original price was: 158.00 €.Current price is: 117.00 €.

The SmartShunt is an all in one battery monitor, only without a display. Your phone acts as the display. The SmartShunt connects via Bluetooth to the VictronConnect App on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more.

Availability: In stock SKU: SHU065150050

Description

The SmartShunt is a good alternative for a BMV battery monitor, especially for systems where battery monitoring is needed but less wiring and clutter is wanted. The SmartShunt is equipped with Bluetooth, a VE.Direct port and a connection that can be used for: monitoring a second battery, midpoint monitoring or a temperature sensor.

Supply voltage range 6,5 – 70 VDC
Current draw < 1mA
Input voltage range, auxiliary battery 6,5 – 70 VDC
Battery capacity (Ah) 1 – 9999 Ah
Operating temperature range -40 +50°C (-40 – 120°F)
VE.Direct communication port Yes
RESOLUTION & ACCURACY
Current ± 0,01A
Voltage ± 0,01V
Amp hours ± 0,1 Ah
State of charge (0 – 100%) ± 0,1%
Time to go ± 1 min
Accuracy of current measurement ± 0,4%
Offset Less than 20 / 40 / 80 mA
Accuracy of voltage measurement ± 0,3%
