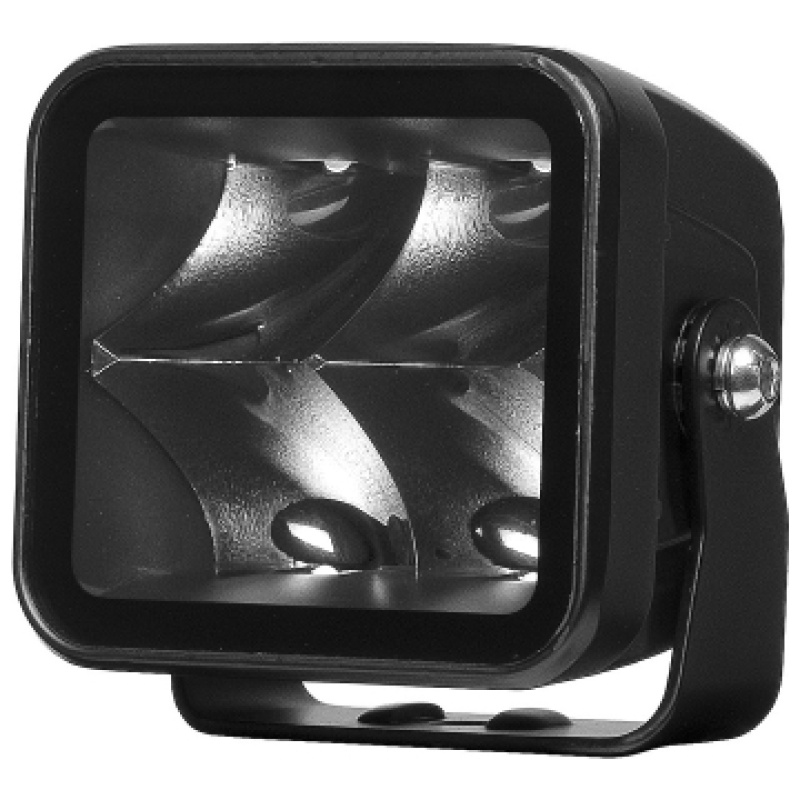

Purelux Black Square 40W Spotlight

Description

The Purelux Black Square Spot 40W is a top-class LED work light for demanding conditions of use. This model is equipped with a narrow and focused light pattern, which is best suited for situations where you need a lot of light in a focused place. Despite its small size, the Black Square Spot delivers a luminous flux of a whopping 2795 lm and a range of 270 m (@ 1 lux), which is among the best available in this size class. Thanks to the compact size (81 x 75 mm), the Terrain Black Square can be mounted easily even in tight spaces. The modern tinted lens also ensures that the lighting blends in nicely regardless of the type of vehicle it is mounted on. The high-quality and shock- and moisture-resistant luminaire, in combination with the basically unbreakable polycarbonate lens, make the Black Square perfectly suited for difficult and demanding conditions of use. Unlike traditional work lights, the Black Square series lens is mounted flush with the outer edge of the fixture in a way that prevents snow, ice and dirt from accumulating in front of the lens. The new, modern reflector technology also means that the risk of glare is reduced, as the LEDs are directed from the upper edge of the lighting towards the reflectors. Can be used with both 12V and 24V systems. The pleasant, neutral color temperature of 5700K ensures that the light does not tire the eyes during long work sessions. Mounting accessories are included in the package. Warranty 24 months.

Content

• Purelux Black Square Spot 40W
• Mounting foot
• Power cable with DT-2 connector

Technical specification

• Brand and model: Purelux Black Square Spot 40W
• Area of use: Work lighting for cars work machines
• LED: 4 x 10W OSRAM
• Measured luminous flux: 2795 lm
• Manufacturer’s reported range:
• Reported range: 540 m @ 0.25 lux / 270 m @ 1 lux
• Manufacturer’s reported color temperature: 5700K
  • Measured luminous flux: 5867K
• Operating voltage: 9-32 V (suitable for both 12V and 24V systems)
• Nominal power: 20 W
  • Measured power: 39.9 W
• Current consumption: 3.33 A @ 12V / 1.66A @ 24V
• Lifespan: 30,000 hours
• Operating temperature: -40 – +85°C
• Cable length: 50 cm with DT2 connector
• Protection class: IP68
• CE, RoHS, ECE R10
• LED: 4 x Osram 5W
• Includes mounting accessories (bolts and mounting feet)
• Dimensions: 81 x 75 x 68 mm (W x H x D)
• Weight: 431 g
• Warranty: 24 months
