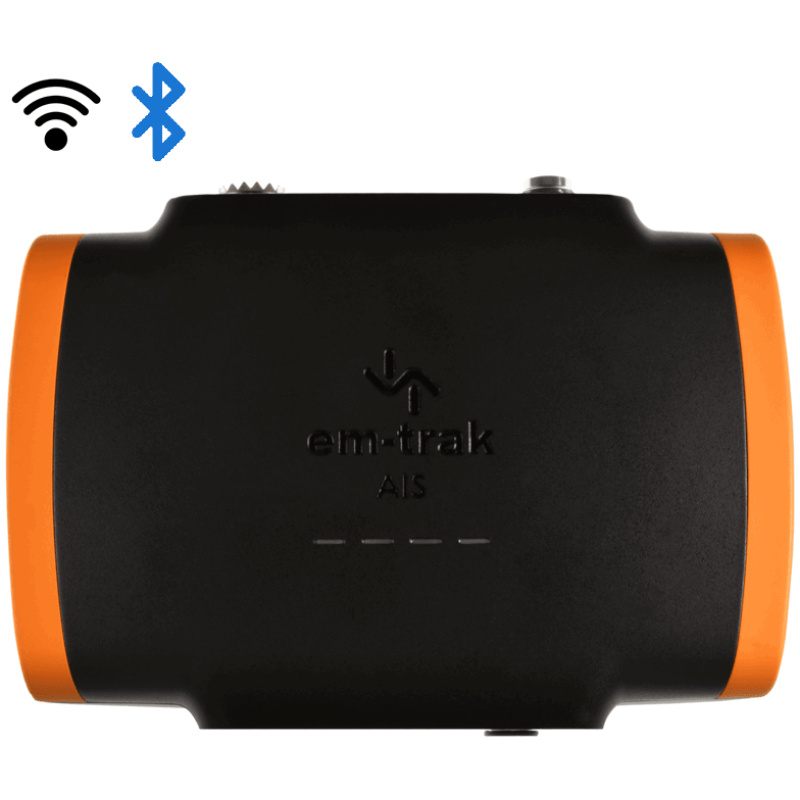

Em-trak B922 transponder (wifi, bluetooth)

Pay in three equal instalments 3 x 396.67

1190.00

The B922 combines WiFi & Bluetooth for seamless wireless connectivity and AIS data streaming to any mobile device or PC.

SKU: 911596

Description

The B922 is a standard power (2W CSTDMA) AIS Class B transceiver that is small, light-weight, yet delivers the very best AIS receive and transmit performance so you see more AIS information and targets at maximum range – all achieved with the least power consumption.

With built in intelligent connectivity, integrated next-generation GPS receiver & antenna and a unique FLEXI-FIT® bracket system, safe and secure installation is simple.

In the box

  • 1 x AIS Transceiver
  • 1 x Power and Data Cable (2m)
  • 1 x FLEXI-FIT Mounting Bracket – Complete with Screws & Optional Fixing Tape

Features

  • Certified AIS Class B – 2W CSTDMA
  • Plug & play connectivity – WiFi & Bluetooth
  • Global Certification – USCG / FCC / Canada / Europe
  • SRT-AIS™ transceiver engine for superlative proven performance
  • FLEXI-FIT™ bracket system for easy, convenient and secure installation
  • Integrated high-performance GPS receiver & antenna (external antenna optional)
  • Water, pressure spray and damp proof – IPx6 & IPx7
  • Ruggedized – protected from vibration, shock and extreme temperatures
  • Small and lightweight
  • Ultra-low power consumption – best in class
  • Guaranteed connectivity and interoperability with any app, chart plotter, smart phone, tablet or PC
  • NMEA0183 & NMEA2000
  • Automated health and performance monitoring
  • Silent Mode (transmit-off) function
  • Enhanced RF screening to protect against electromagnetic interference
  • Built-in power surge protection

PHYSICAL SPECIFICATION
Size – 150mm x 110mm
Weight – 330g

ELECTRICAL SPECIFICATION
Power Supply – 12-24V DC
Power Consumption  – 2.05W (170mA @ 12V)
(WiFi & Bluetooth on)
Power Consumption – 1.65W (135mA @ 12V)
(WiFi & Bluetooth off)

DATA INTERFACES
Physical Data Interfaces
NMEA0183 (2)
NMEA2000
USB

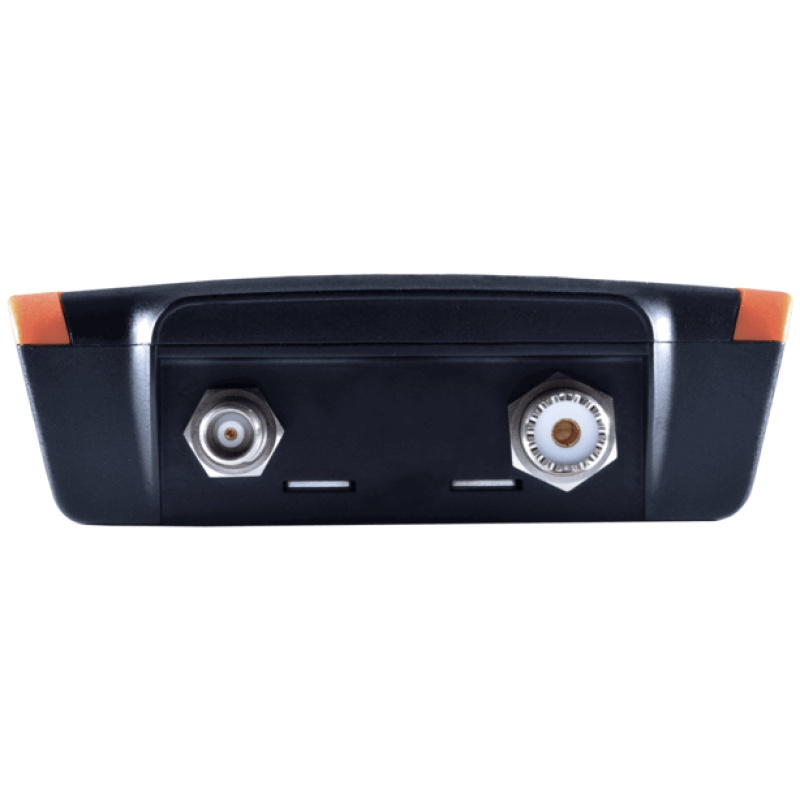

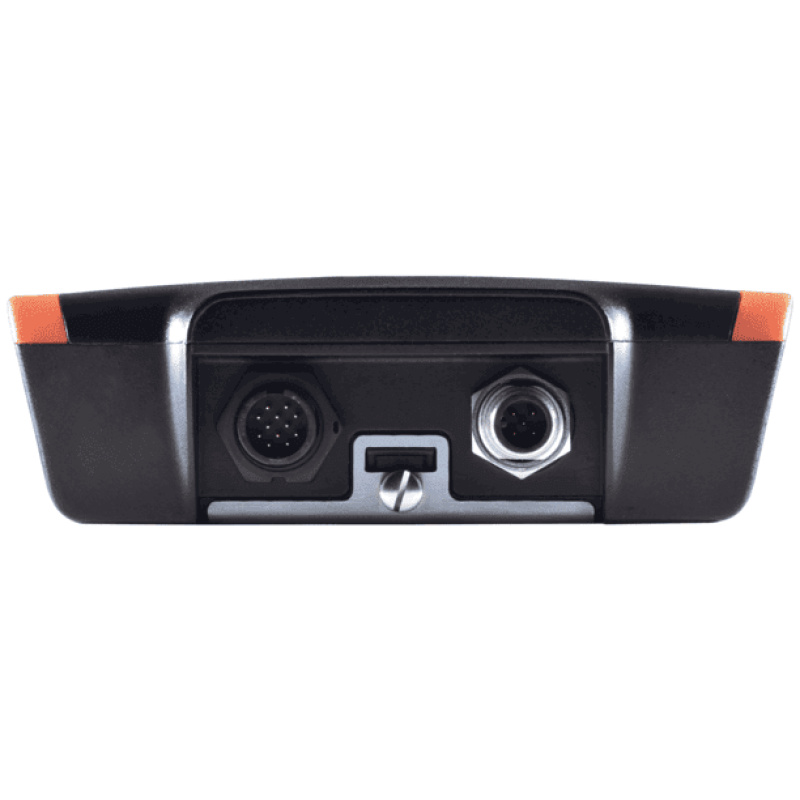

CONNECTORS
VHF Antenna Output – SO239
VHF Radio Input – N/A
GPS Antenna – TNC
NMEA2000 – Standard 5 Way Micro-C Connector
Power/NMEA0183 – 12 Way Circular Multipole
USB – Micro USB

VHF TRANSCEIVER
Access Scheme – CSTDMA
Operating Frequency Range – 156MHz to 163MHz
AIS Receiver Sensitivity – -111dBm
AIS Transmit Power – 2W (+33dBm)

GPS RECEIVER & ANTENNA
Channels – 72
Type & Performance – GPS/Galileo + GLONASS or BEIDOU

ENVIRONMENTAL STANDARD
Category – Exposed
Water Proofing – IPx6 & IPx7
Operating Temperature – -25°C to +55°C

Additional information

Omadused

Bluetooth, Class B, Inbuilt GPS antenna, NMEA0183, NMEA2000, Transmit power 2W, USB, Wifi
