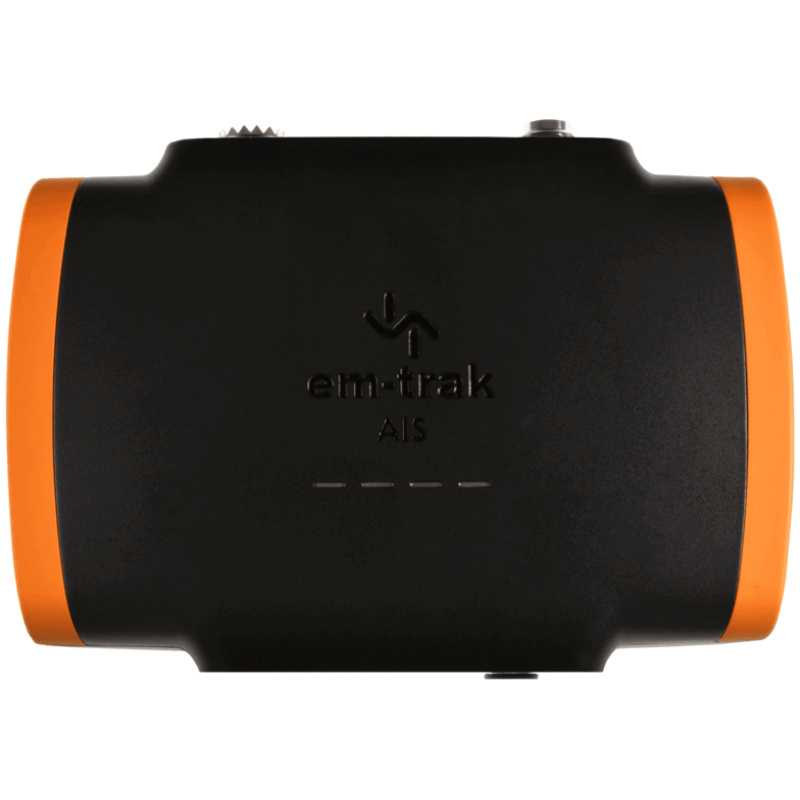

Em-trak B951 transponder

Pay in three equal instalments 3 x 266.33 €

Original price was: 970.00 €.Current price is: 799.00 €.

The B951 is a high transmit power (5W SOTDMA) AIS Class B transceiver that is small, light-weight, yet delivers the very best AIS receive and transmit performance so you see more AIS information and targets at maximum range – all achieved with the least power consumption.

Availability: In stock SKU: 911599

Description

In the box

  • 1 x AIS Transceiver
  • 1 x Power and Data Cable (2m)
  • 1 x FLEXI-FIT Mounting Bracket – Complete with Screws & Optional Fixing Tape

Features

  • Certified AIS Class B – 5W SOTDMA
  • Global Certification – USCG / FCC / Canada / Europe
  • Plug & Play connectivity – WiFi & Bluetooth
  • FLEXI-FIT™ bracket system for easy, convenient and secure installation
  • Integrated high-performance GPS receiver and antenna (external antenna optional)
  • Water, pressure spray and damp proof (IPx6 & IPx7)
  • Ruggedized – Protected from vibration, shock and extreme temperatures
  • Small and lightweight
  • Ultra-low power consumption – best in class
  • NMEA0183 & NMEA2000
  • Automated health and performance monitoring
  • Silent Mode (transmit-off) function
  • Enhanced RF screening to protect against electromagnetic interference
  • Built-in power surge protection

PHYSICAL SPECIFICATION
Size – 150mm x 110mm
Weight – 320g

ELECTRICAL SPECIFICATION
Power Supply – 12-24V DC
Power Consumption – 1.65W (135mA @ 12V)

CONNECTORS
VHF Antenna Output – SO239
VHF Radio Input – SO239
GPS Antenna – TNC
NMEA2000 – Standard 5 Way Micro-C Connector
Power/NMEA0183 – 12 Way Circular Multipole
USB – Micro USB

DATA INTERFACES
Physical Data Interfaces
NMEA0183 (2)
NMEA2000
USB

STANDARDS COMPLIANCE
AIS Standards – IEC62287-2 Ed 2
Product Safety Standards – EN60950-1
Environmental Standard – IEC60945 Ed 4

VHF TRANSCEIVER
Access Scheme – SOTDMA
Operating Frequency Range – 156MHz to 163MHz
AIS Receiver Sensitivity – -111dBm
AIS Transmit Power – 5W (+37dBm)

GPS RECEIVER & ANTENNA
Channels – 72
GPS Type & Performance – GPS/Galileo + GLONASS or BEIDOU

ENVIRONMENTAL STANDARD
Category – Exposed
Water Proofing – IPx6 & IPx7
Operating Temperature – -25°C to +55°C

Additional information

Omadused

Class B, Inbuilt GPS antenna, NMEA0183, NMEA2000, Transmit power 5W, USB
