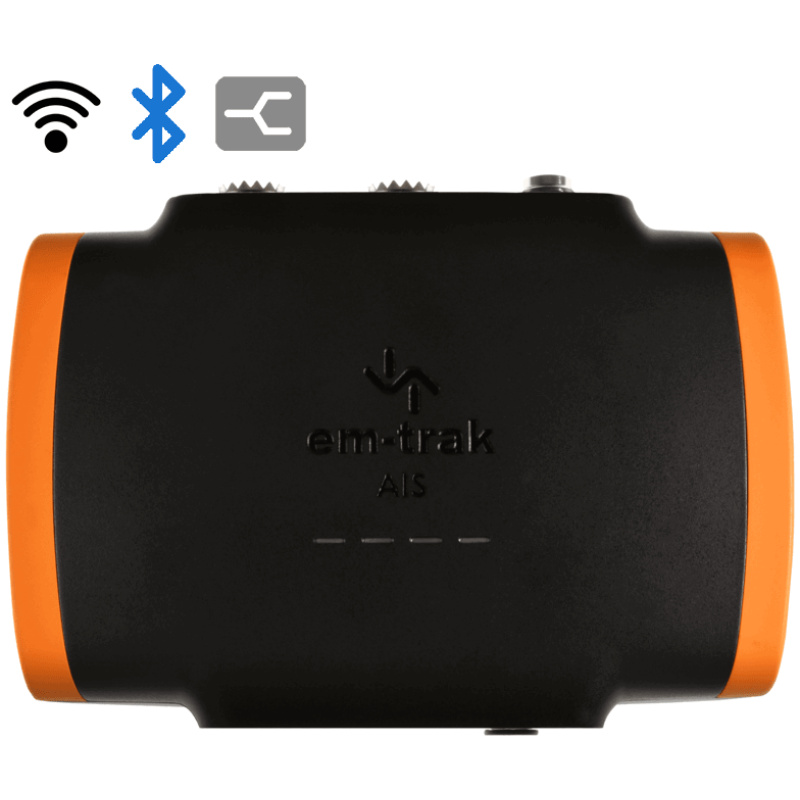

Em-trak B954 transponder (wifi, bluetooth, antenna splitter)

Pay in three equal instalments 3 x 556.67

1670.00

The B954 combines WiFi & Bluetooth for seamless wireless connectivity and AIS data streaming to any mobile device or PC as well as a high performance integrated VHF antenna splitter which enables the transceiver to share your existing VHF antenna without any loss of performance.

SKU: 911602

Description

The B954 is a high transmit power (5W SOTDMA) AIS Class B transceiver that is small, light-weight, yet delivers the very best AIS receive and transmit performance so you see more AIS information and targets at maximum range – all achieved with the least power consumption.

With built in intelligent connectivity, integrated next generation GPS receiver & antenna and a unique FLEXI-FIT bracket system, safe and secure installation is simple.

Features

  • Certified AIS Class B – 5W CSTDMA
  • Plug & play connectivity – WiFi and Bluetooth
  • Integrated high performance VHF antenna splitter
  • Global Certification – USCG / FCC / Canada / Europe
  • SRT-AIS™ transceiver engine for superlative proven performance
  • FLEXI-FIT™ bracket system for easy, convenient and secure installation
  • Integrated high-performance GPS receiver & antenna (external antenna optional)
  • Water, pressure spray and damp proof (IPx6 & IPx7 Certified)
  • Ruggedized – protected from vibration, shock and extreme temperatures
  • Small and lightweight
  • Ultra-low power consumption – best in class
  • NMEA0183 & NMEA2000
  • Automated health and performance monitoring
  • Silent Mode (transmit-off) function
  • Enhanced RF screening to protect against electromagnetic interference
  • Built-in power surge protection

In the box

  • 1 x AIS Transceiver
  • 1 x Power and Data Cable (2m)
  • 1 x VHF Radio Accessory Cable (1m)
  • 1 x FLEXI-FIT Mounting Bracket – Complete with Screws & Optional Fixing Tape

PHYSICAL SPECIFICATION
Size – 150mm x 110mm
Weight – 330g

ELECTRICAL SPECIFICATION
Power Supply – 12-24V DC
Power Consumption
WiFi & Bluetooth on – 3.35W (280mA @ 12V)
WiFi & Bluetooth off – 2.95W (245mA @ 12V)

CONNECTORS
VHF Antenna Output – SO239
VHF Radio Input – SO239
GPS Antenna – TNC
NMEA2000 – Standard 5 Way Micro-C Connector
Power/NMEA0183 – 12 Way Circular Multipole
USB – Micro USB

DATA INTERFACES
Physical Data Interfaces
NMEA 0183 (2)
NMEA 2000
USB

STANDARDS COMPLIANCE
AIS Standards – IEC62287-2 Ed 2
Product Safety Standards – EN60950-1
Environmental Standard – IEC60945 Ed 4

VHF TRANSCEIVER
Access Scheme – SOTDMA
Operating Frequency Range – 156MHz to 163MHz
AIS Receiver Sensitivity – -111dBm
AIS Transmit Power – 5W (+37dBm)

GPS RECEIVER & ANTENNA
Channels – 72
GPS Type & Performance – GPS/Galileo + GLONASS or BEIDOU

ENVIRONMENTAL STANDARD
Category – Exposed
Water Proofing – IPx6 & IPx7
Operating Temperature – -25°C to +55°C

ANTENNA SPLITTER
VHF Radio Transmit Path Loss – <1dB
Receive Path Loss – 0dB
Path Switching Time – < 10us VHF Radio Path Rating > 25W
Path on Power Failure – VHF to Antenna
Antenna Fault Detection – Yes
Switch Type – Solid state

Additional information

Omadused

Bluetooth, Class B, Inbuilt GPS antenna, NMEA0183, NMEA2000, Transmit power 5W, USB, VHF antenna splitter, Wifi
