Scout Quick-4 VHF fiberglass antenna 1m
Pay in three equal instalments 3 x 28.00 €
Original price was: 102.00 €.84.00 €Current price is: 84.00 €.

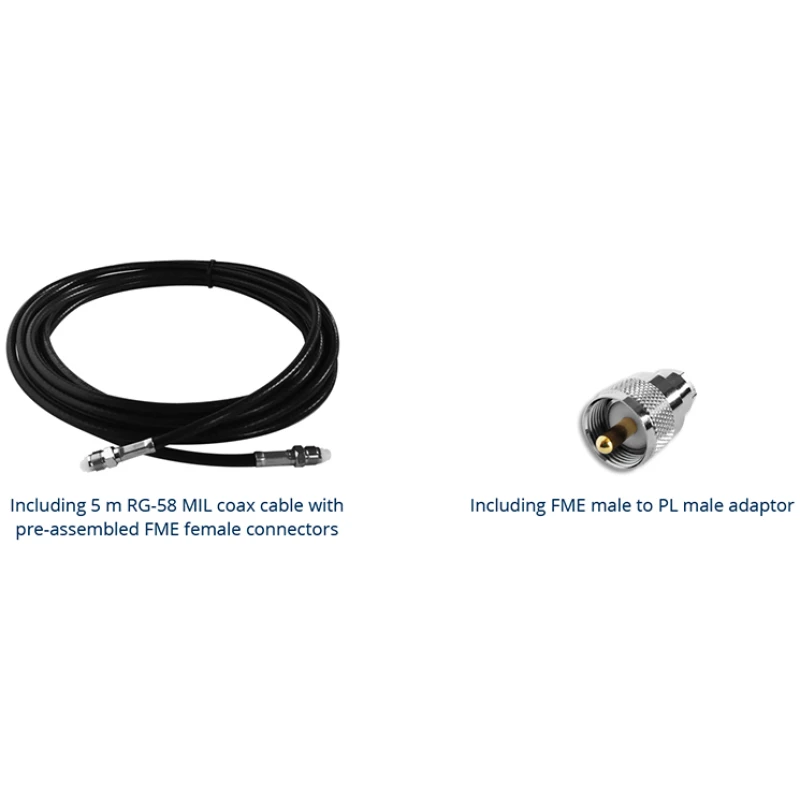

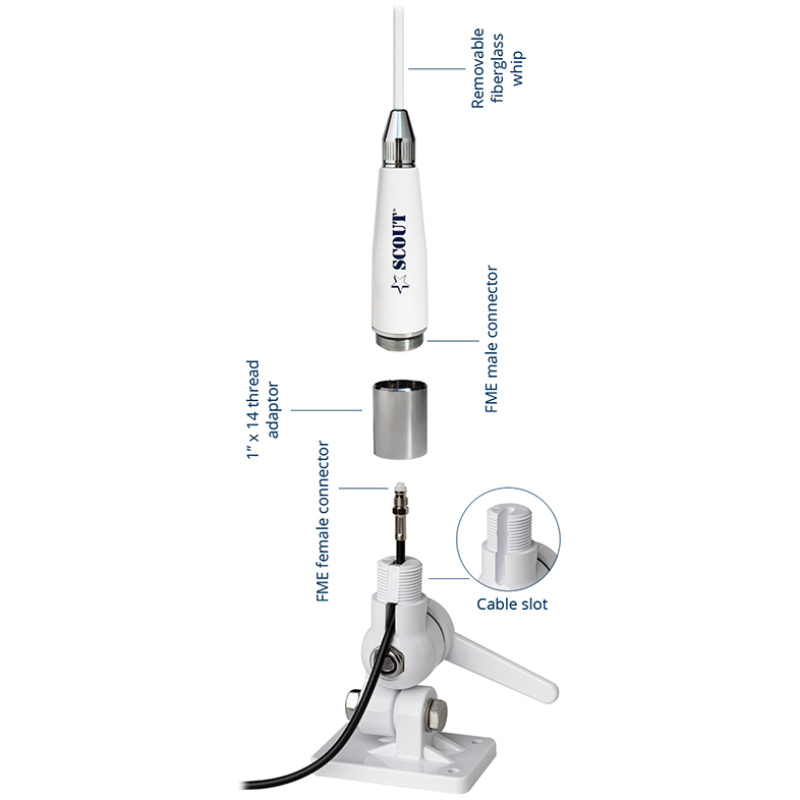

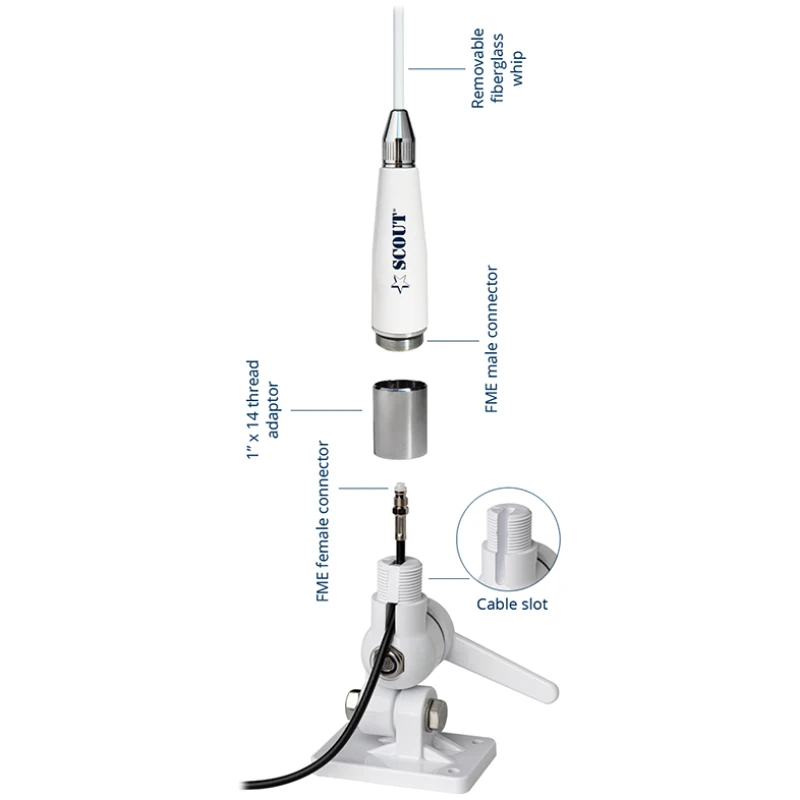

QUICK 4 has been designed to be easily installed on every type of boat, thanks to its unique technical features: the white fiberglass rod can be easily removed by hand whenever not needed, the FME male connector for a simple connection of the 5 m coaxial cable with pre-installed FME connectors, the stainless steel 1” x 14 thread adaptor to enable a fast installation of the antenna on any kind of deck mount, rail mount and bracket. Package includes antenna, 5m cable with FME connectors and FME/PL-259 adapter.
- Description
- Kirjeldus
Description
Technical specifications:
Frequency | 156-162 MHz |
Impedance | 50 ohm |
Electrical length | 1/2 λ |
V.S.W.R. | < 1,5:1 |
Polarization | Vertical |
Gain | 3 dB |
Max power input | 50 W |
DC ground | Yes |
Whip material | Fiberglass |
Connector | FME Male |
Mounting | 1″ x 14 thread adaptor |

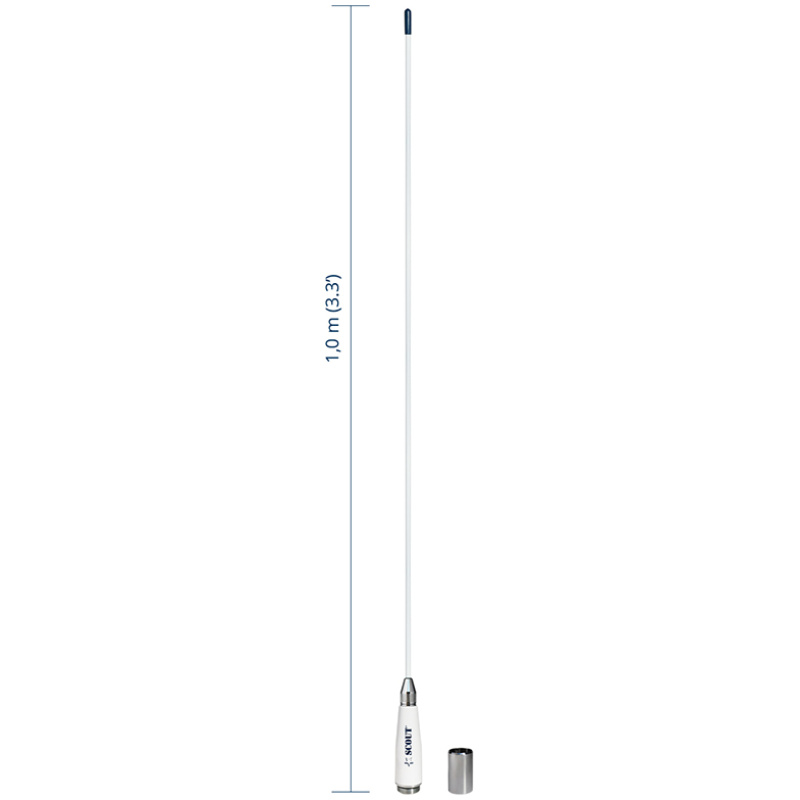

Length | 1,0 m (3.3′) |
Weight | 0,40 kilo |
