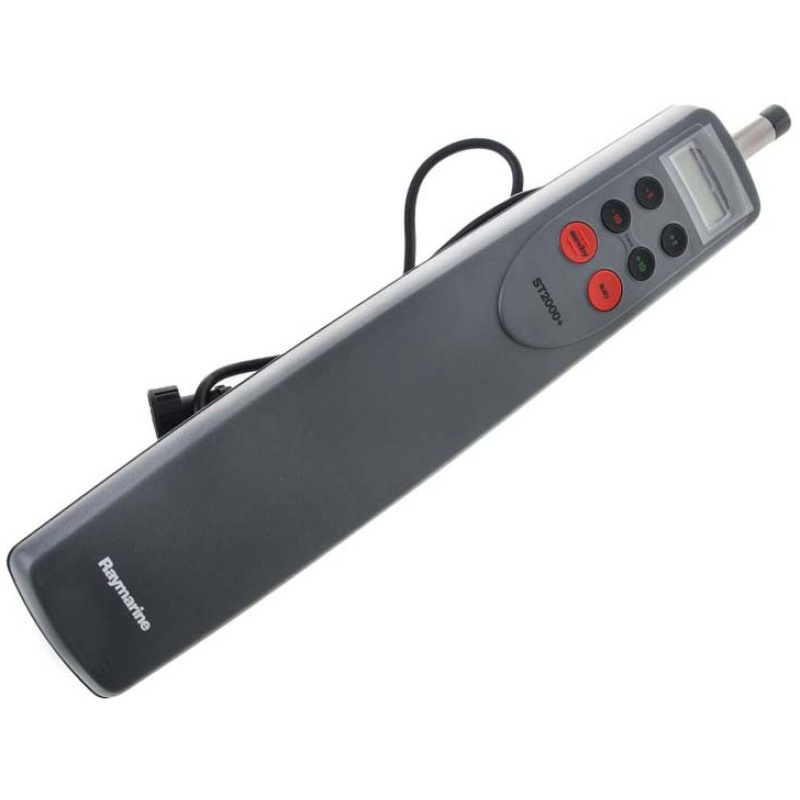

Raymarine Tiller Pilot ST2000+

Pay in three equal instalments 3 x 209.67 €

Original price was: 774.00 €.Current price is: 629.00 €.

Invented by Autohelm in 1973, tiller pilots have consistently been the world’s most popular pilot ever since, setting the standard for performance, reliability and ease of use. Advanced features are standard. AutoTack lets you handle the sheets, while the pilot tacks the boat and AutoSeastate intelligently keeps the boat on course while conserving power. Whether used as a stand-alone pilot or with a SeaTalk/NMEA GPS, the clear backlit LCD and 6-button keypad make these pilots safe and easy to use.

SKU: A12005

Description

Features

  • Easy-to-use controls
  • Optional remote control and external compass
  • Waypoint advance feature item
  • Efficient, intelligent steering for optimum power conservation
  • Autotack
  • User adjustable settings and alarms
  • Manual and autoseastate, autotrim
  • User calibration for optimum performance
  • WindTrim control in WindTrim mode
  • Automatic compass deviation correction
  • Northerly/Southerly heading compensation
  • Backlit LCD display of heading, locked courseand navigational information
  • Automatic heading deadband – seastate control

Specifications

  • Helm speed (lock to lock): 4.5 seconds
  • Integral fluxgate compass
  • Drive mechanism: re-circulating ball drive
  • Drive unit thrust torque: 77 kg (170 lb)
  • Interfaces: SeaTalk and NMEA 0183 Input
  • Maximum boat: 4,500 kg (10,000 lb)
  • Operating temperature: 0°C to +70°C (32°F to 158°F)
  • Power Consumption: Standby: 40 mA (90 mA with full lighting), Auto: 0.5 A to 1.5 A depending on boat trim, helm load and sailing conditions
  • Power supply: 10 V to 15 V DC
  • Backlit LCD confirms current and locked heading, plus wind and navigational data when connected to a system
  • Powerful and efficient drive unit housed in a waterproof case
