Actisense NMEA 2000 network SBN-1
Pay in three equal instalments 3 x 43.00 €
129.00 €

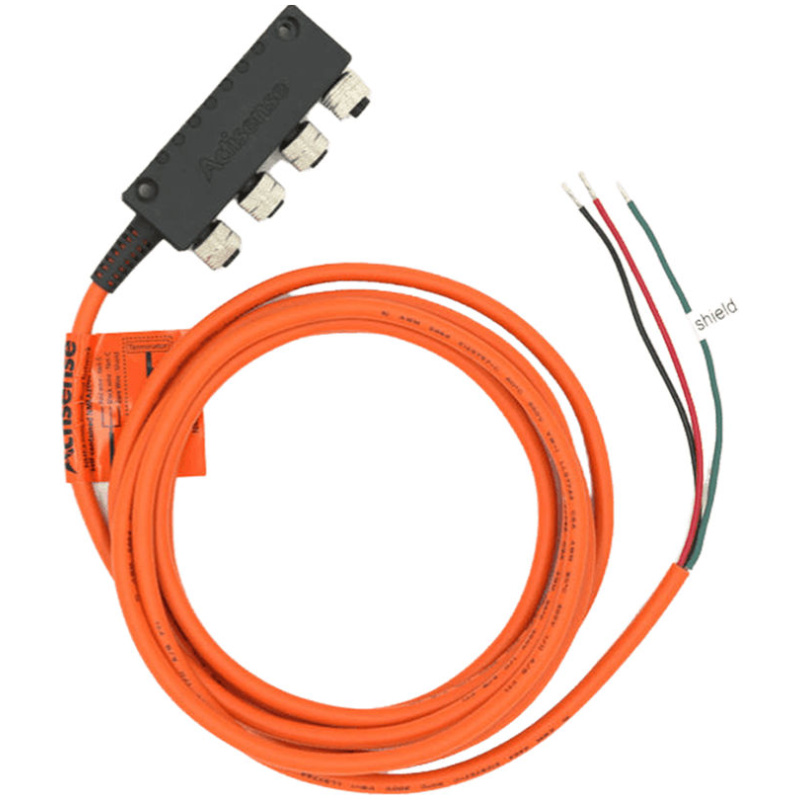

Installing small NMEA 2000® networks is quicker and easier than it’s ever been with this Self-contained Boat Network (SBN-1) from Actisense.
The equivalent of four T-pieces in a single case provides a significant time and space saving with no more connecting multiple T-pieces together. Termination resistors are built in which increases the saving on time and space. Once the attached 3 metre cable is connected to the boats power supply, an NMEA 2000 network for up to four devices is ready to use, taking ‘plug & play’ to the next level.
- Description
- Kirjeldus
Description
FEATURES
- Self-contained NMEA 2000 Network
- Integrated Termination Resistors
- 4x NMEA 2000 drops
- Ruggedized, flame retardant over-moulded housing
- Metal coupling nuts
- Integrated EMI shield
- Orange, UL Rated, 3-meter power cable
- Colour coded wires, stripped and tinned
BENEFITS
- Low cost, quick to install and provides and easy way to connect multiple NMEA 2000 devices.
- Simple installation, fewer components, more reliable, lower cost.
- Accommodates the vast majority of compact NMEA 2000 networks
- Suitable for wet and harsh conditions- highly desirable in marine environments
- Reliable, long lasting connections
- Less likely to be susceptible to interference
- UL rated cable provides peace of mind. Colour easily differentiates the power cable from drop cables
- Quick installation, no special tools required
| Electrical | |
| Rated Current | 3 A |
| Rated Voltage | 60 V (AC/DC) |
| Rated Voltage | 2 * 121 Ω ± 1% 250mW |
| Mechanical | |
| Female Contact | Phosphor bronze, gold plated |
| Contact Carrier | PBT, black |
| Contact Polarisation | Standard M12 -“A”- polarisation |
| Mating Thread | M12 |
| Screw Cap | Brass, nickel plated |
| O-Ring Seal | Rubber |
| Housing | TPU, flame retardant to UL94V-0, Halogen Free |
| Cable Jacket Material | 0.8mm Nom. PVC, orange |
| Cable Outer Diameter | 6.8mm |
| Cable Length | 3m |
| Wire Length | 140mm (mm stripped) |
| Wire Jacket | PVC |
| Wires | 16 AWG (stripped and tinned) |
| Drain | 3m |
| Cable Shield | 3m |
| Weight | 105g |
| Approvals and Certifications | |
| NMEA 2000 Approved | |
| RoHS Compliant | |
| Protection | IP67 (when mated) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| UL Certified (E129757) | |
