i60

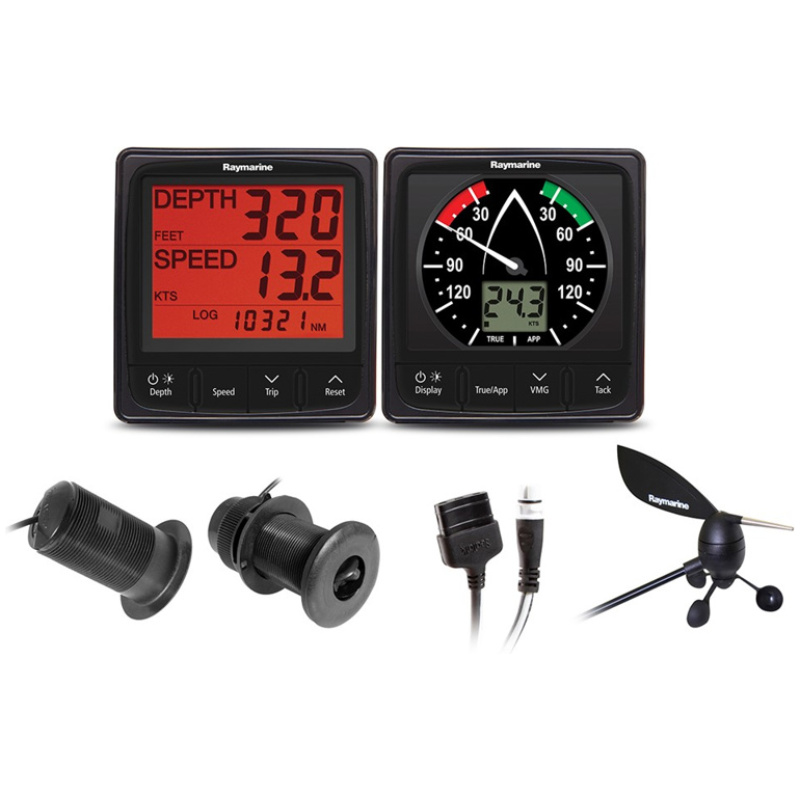

Raymarine i50 Tridata & i60 Wind System Combo

Pay in three equal instalments 3 x 550.00 €

1650.00 €

The i50 Tridata is a multifunction instrument. It combines the basic elements of navigation in one instrument: depth and speed data in a clear 3-line format. The i60 Wind combines analogue and digital wind data. It calculates apparent and true wind speed and angle, maximum wind speed, etc. Supplied complete with masthead unit and connection cable.

SKU: 63672

Description

i50 Tridata System
The i50 Tridata is a multifunctional instrument, which combines the basic elements of navigation into one device: Depth and speed data are easily accessible, in an easy-to-read 3-line display. The large display with large digits ensures that all essential information is available immediately at a glance. The device offers a special depth and speed indicator with a daily and total log, water temperature and SOG (speed over ground). Comes included with a sensor for depth / speed / temperature. SeaTalk interface. 12 volt operating voltage.
Main Features:
  • Large numerals and digits
  • Red backlighting for better visibility at night
  • SeaTalk and SeaTalkng connections
  • NMEA 2000 (compatible) connections
  • Transducer port
  • Large housing (100 x 115 mm)
  • Low power consumption
  • Supports multiple data sources, thus avoiding potential data conflicts
  • Frontal mounting for easy installation
  • Delivered with black and grey frame

Specifications

Nominal voltage 12V DC
Voltage range 10-16V DC
Power consumption Typical <1W (display only) and 2.4W with transducer connected
Power consumption 45 to 65mA (only display) and 200mA with transducer connected
Operating temperature -20°C to +55°C
Storage temperature -30°C to +70°C
Relative humidity up to 93%
Water rating IPX6
Connections 2x SeaTalkng and transducer
Compatible with Marine Industry CAN systems
Compliance Europe 2004/108/EC
Included i50 instrument, front frame, SeaTalk to SeaTalkng adapter cable, SeaTalkng spur cable, seal, cover, documentation, SeaTalkng dummy cap and 4x screws, transducer P120 (E26031) & P(3)19 (M78713-PZ); (51mm bottom sleeve dimension, 14m cable length each).

i60 Wind System

The i60 Wind combines analog and digital wind data. 360° graduation, measuring range 20°-180° portside/starboard. It calculates apparent and true wind speed and angles, maximum wind speed with adjustable alarm, Beaufort display, kn or m/s, adjustable damping, calibration of mast transducer. SeaTalk interface. Supplied with masthead unit and connection cable. 12 volt operating voltage.
Stylish instruments for sailors
The i60 instruments are designed to complement the new Raymarine multifunction displays. The stylish wind and windscreen displays are tailored to the specific needs of sailors, and represent the wind data in analog and digital format.
Excellent viewing angles both during the day and at night, clear buttons allow for extremely easy operation of the i60 instruments. Thanks to the front mounting, installation is also simple.
Main Features:
  • Large dials
  • Red backlighting for better visibility
  • SeaTalk and SeaTalkng connections
  • NMEA2000 (compatible) connections
  • Transducer port
  • 30 metre mast cable
  • 110 mm x 115 mm – the same dimensions as the Raymarine ST60 + instrument series
  • Low power consumption
  • Supports multiple data sources, thus eliminating potential data loops
  • Front mounting for easy installation
  • Delivered with black and grey frame

Specifications

Nominal voltage 12V DC
Voltage range 10-16V DC
Power consumption Typical <1W (display only) and 2.4W with transducer connected
Power consumption 45 to 65mA (only display) and 200mA with transducer connected
Operating temperature -20°C bis + 55°C
Storage temperature -30°C to +70°C
Relative humidity up to 93%
Water rating IPX6
Connections 2x SeaTalkng and transducer (E70061 only)
Compliance Europe 2004/108/EC
Included i60 instrument, front panel, SeaTalkng drop cable, masthead unit, 30 metre mast cable, seal, cover, documentation, SeaTalkng dummy cap, 4x screws
