Isotherm 2001 Compact SEC

Pay in three equal instalments 3 x 313.33 €

940.00 €

Using air which is blown through the condenser by a fan is the traditional way to remove the heat. It is important that the compressor compartment is well ventilated allowing cold air to enter from below and hot air to escape to the top.

SKU: 08975

Description

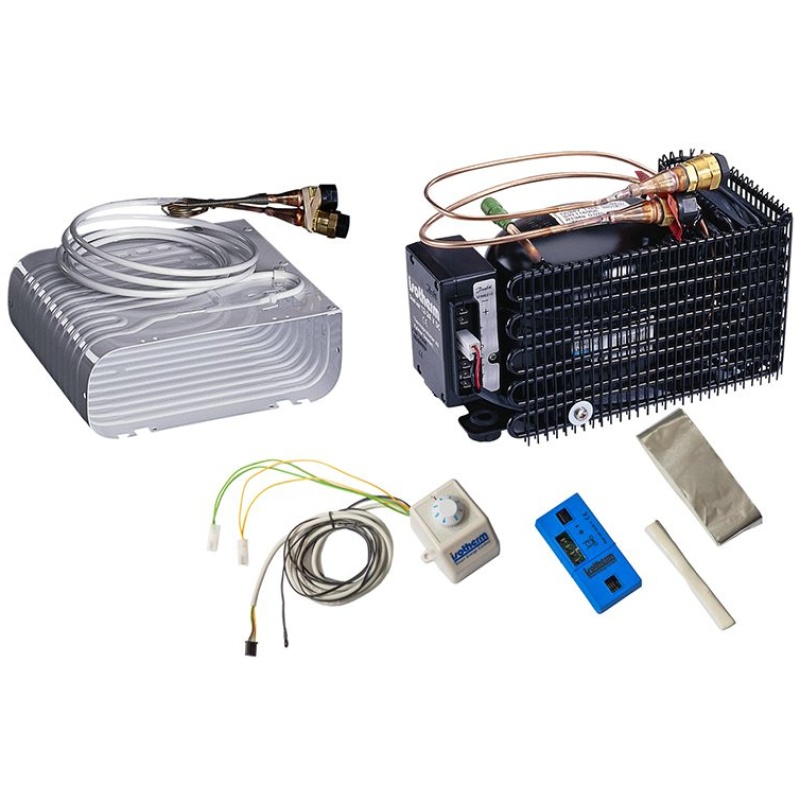

The Isotherm Compact 2001 Refrigeration System is an ice box conversion kit that will refrigerate a space up to 125L or a freeze a properly insulated space up to 35L. It has an “O” shaped evaporator complete with door. An “O” shaped evaporator acts like the freezer section in a cabinet refrigerator and will keep ice or frozen foods stored inside frozen. The evaporator can be mounted horizontally or vertically. It comes pre-charged with quick-connections and 6’ of flexible copper refrigeration lines, which makes installation easy. This DC-only model comes complete with compressor mounting bracket and thermostat.

  • Refrigeration kit for max 125L refrigerator
  • DC 12/24V
  • Pre-charged with quick-connects
  • Draw (maximum): 2.5A @ 12V; 1.25A @ 24V
  • Weight: 9 kg
  • Evaporator dimensions: 3 3/8″H x 9 1/2″W x 8 1/4″D

With Smart Energy Control , Isotherm offers a very unique opportunity to dramatically reduce power consumption of refrigeration appliance. Better use of what is readily available!

Features:

  • Up to 35% savings thanks to a more efficient use of the compressor
  • Up to 50% savings with combined effects of stored cooling energy in food and drinks
  • No need for eutectic plates or special storage devices
  • Easy to Retrofit
    • The Cruise Elegance line provides a preformed location in the cabinet for the temperature sensor
  • Quick cooling in boost mode
  • Soft start option to avoid starting surges
  • Separate freezer compartment

How the Smart Energy Controller Works:

  • Continuously scans a set of key environmental factors
    • Determines the most relevant processor speed to maximize the performance
  • This device not only makes your fridge intelligent, but also allows the storage of a significant amount of cooling energy into the stored food and drinks
    • Reduces the cabinet temperature more than a traditional fridge without freezing the food
  • This process is continuously monitored by an air sensor in the cabinet
  • The cooling energy is stored when a power surplus is available (engine on or connection to grid) and reused first, before the fridge runs on battery
