Purelux Terrain LED-lisätyövalo 12W 6000K

Purelux Terrain 12W Spotlight

20.00 €

Very compact (53 x 53 mm) work lighting with a spotlight pattern. Perfect for installation in tight spaces. The wide operating voltage 9-32 V makes it suitable for several systems, 24 months warranty!

Saadavus: Laos Tootekood: 1342

Kirjeldus

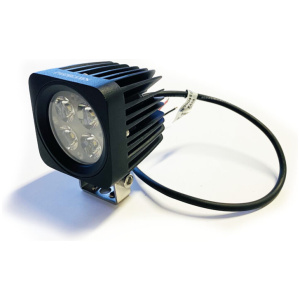

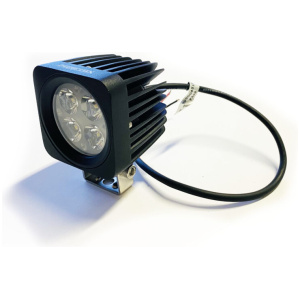

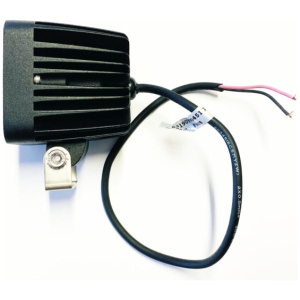

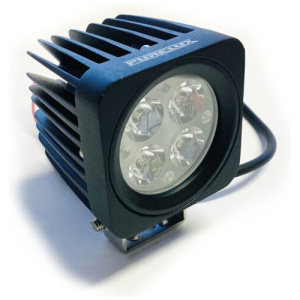

The Purelux Terrain is a really stylish work light that provides a spotlight pattern. Purelux is suitable for situations where you want a discreet installation, for example as a reversing light, on the roof of the vehicle or in the front. Despite its compact size of only 53 x 53 mm (width x height), the Purelux has a high performance combined with a high-quality ribbed polycarbonate lens with a measured range of 39 m @ 1 lux! Thanks to its compact size, the lighting can also be easily installed in really tight spaces. Two year (24 month) warranty!

The shock and vibration resistant aluminum structure combined with a virtually unbreakable polycarbonate lens and an advanced heat management system ensure durability even under heavy use. Durability is also increased with the robust stainless steel mounting base, which ensures that the work light stays in place. In addition, the Purelux Terrain is dust and waterproof according to class IP67. The wide operating voltage (10-30 V) enables installation in both 12V and 24V systems

Content

  • Purelux Terrain 12w
  • Mounting foot
  • Fastening bolt
  • Installation and operating instructions (EN, FI, SE, NO)

Technical specification

  • Brand and model: Purelux Terrain
  • Area of use: As work lighting for cars/work machines
  • LED: 4 x 3W Osram
  • Operating voltage: 10-30 V (DC)
  • Manufacturer’s reported current consumption: 0.75 A @ 12 V / 0.43 A @ 24 V
    • Measured current consumption: 0.75 A @ 12 V / 0.43 A @ 24 V
  • Estimated power: 12 W
  • Manufacturer’s reported power: 11.2 W
    • Measured power: 10.4 W
  • Theoretical luminous flux: 1200 lm
    • Measured luminous flux: 920 lm
  • Valostore’s measured range: 77 m @ 0.25 lux / 39 m @ 1 lux
  • Manufacturer’s reported color temperature: 6000 K
    • Measured color temperature: 5853 K
  • Illumination angle: 90°
  • Mounting: Mounting foot
  • Contact: Direct wire, no contact
  • Cable length: approx. 50 cm
  • Dimensions: 53 x 53 x 32 mm (Width x Height x Depth)
  • Height with mounting foot: 75 mm
  • Weight: 180 g
  • Protection class: IP67
  • Approvals: CE, RoHS
  • Warranty: 24 months
