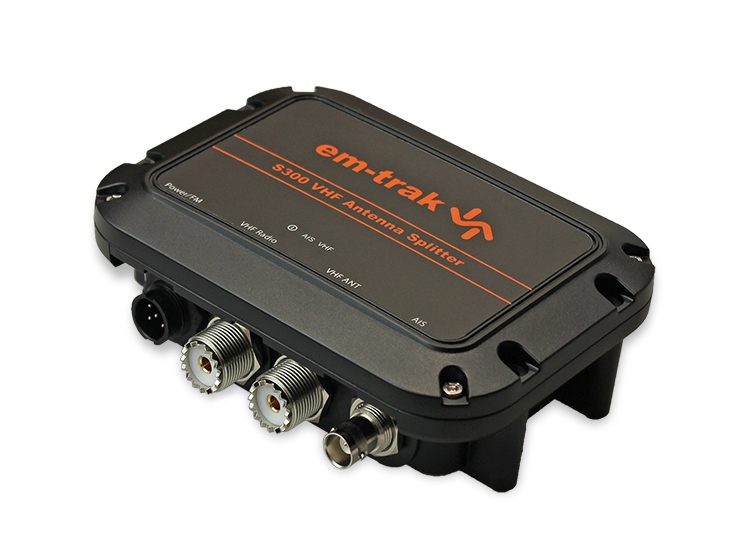

Em-trak S300 VHF Antenna Splitter

Tasu kolme võrdse maksena 3 x 126.67

Algne hind oli: 420.00 €.Current price is: 380.00 €.

The em-trak S300 provides you with reliable, high performance VHF antenna sharing capability. With the S300 a single VHF antenna can simultaneously support the full operation of your AIS transceiver, VHF radio and FM radio.

Saadavus: Laos Tootekood: S300

Kirjeldus

After fifteen years of creating marine electronics products we understand the environment within which our products must operate. The S300 is a single small unit which is simple to install and use and has been specifically designed, engineered and manufactured for long term continuous use in even the most extreme marine environments.

The S300’s core technology enables it with superior performance which translates into zero performance loss for the connected devices. The S300 is an ideal complement to a good quality Class B or Receiver where there is an existing VHF antenna available currently used for your VHF radio.

Dimensions & weight
140 x 100 x 50 mm (D x W x H)
280g

RF Interfaces
VHF antenna output – SO239 connector
VHF radio input – SO239 connector
AIS input – BNC connector

Power
12 or 24V DC
Power consumption:
150mA @12VDC, <2W average

RF transceiver
Insertion loss (receive) 0dB
Insertion loss (transmit) < 1dB
Power handling – VHF port: 25W
Power handling – AIS port: 12.5W
Operating frequency range: 156.000 to 163.425MHz
