Wichard Key Pin seekel 6mm roostevaba

Algne hind oli: 28.00 €.Current price is: 18.00 €.

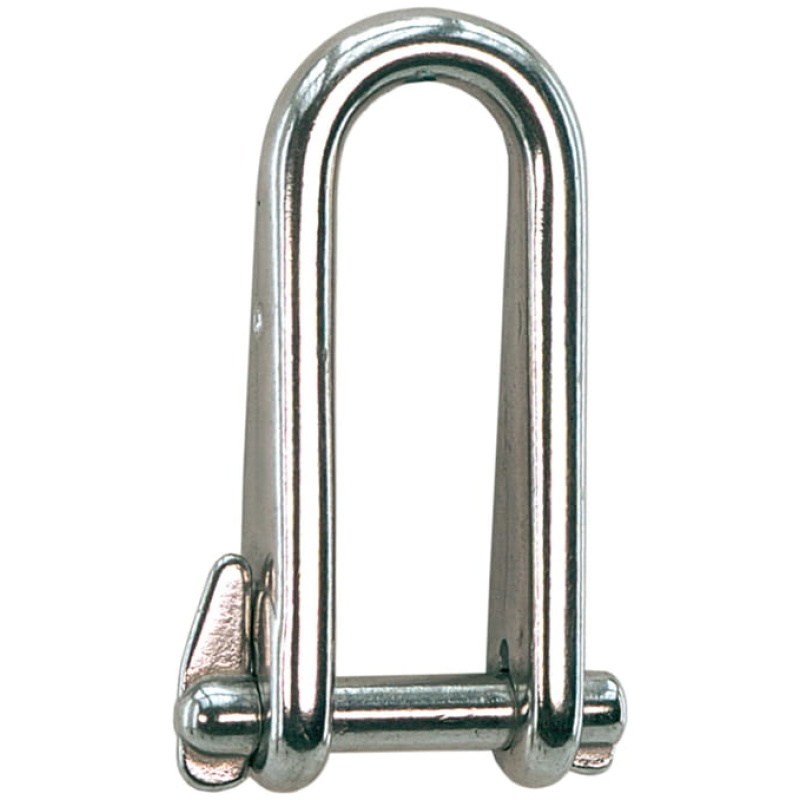

The Wichard Key Pin Shackle is an innovative captive pin shackle. It has a patented self-locking pin and is designed for better line handling.

Roostevaba teras
Key Pin läbimõõt: 6 mm
Sisemine pikkus: 45 mm
Sisemine laius: 16 mm

Saadavus: Laos Tootekood: 8259408-1

Kirjeldus

  • 6 mm ( 15/64″) Shackle:
    • Working Load: 520 kg (1140 lbs)
    • Breaking Load: 1500 kg (3300 lbs)
    • Weight: 48 g (0.106 lbs)

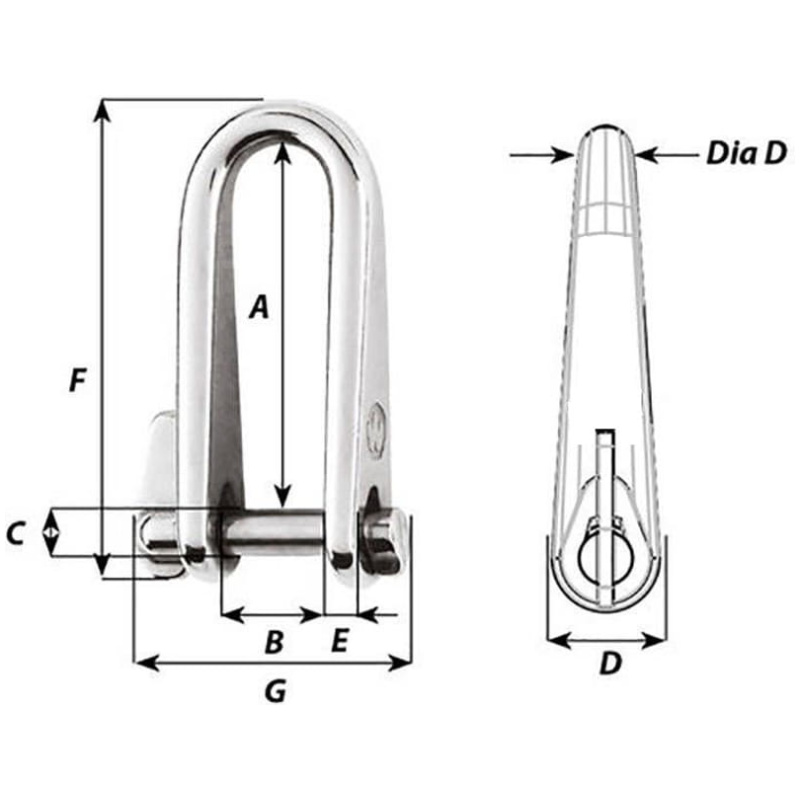

    • A: 45 mm (1 49/64″)
    • B: 16 mm (5/8″)
    • C: 6 mm (15/64″)
    • D: 13 mm (33/64″)
    • D Diameter: 6 mm (15/64″)
    • E: 4 mm (5/32″)
    • F: 60 mm (2 23/64″)
    • G: 37 mm (1 29/64″)
