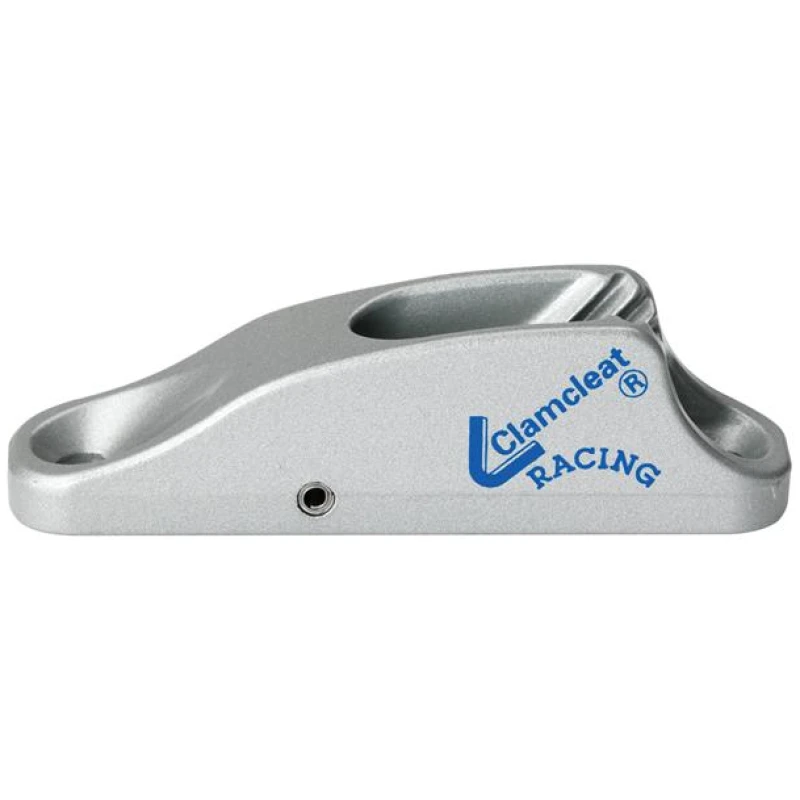

Clamcleat 230 Racing Junior MK1 rullikuga

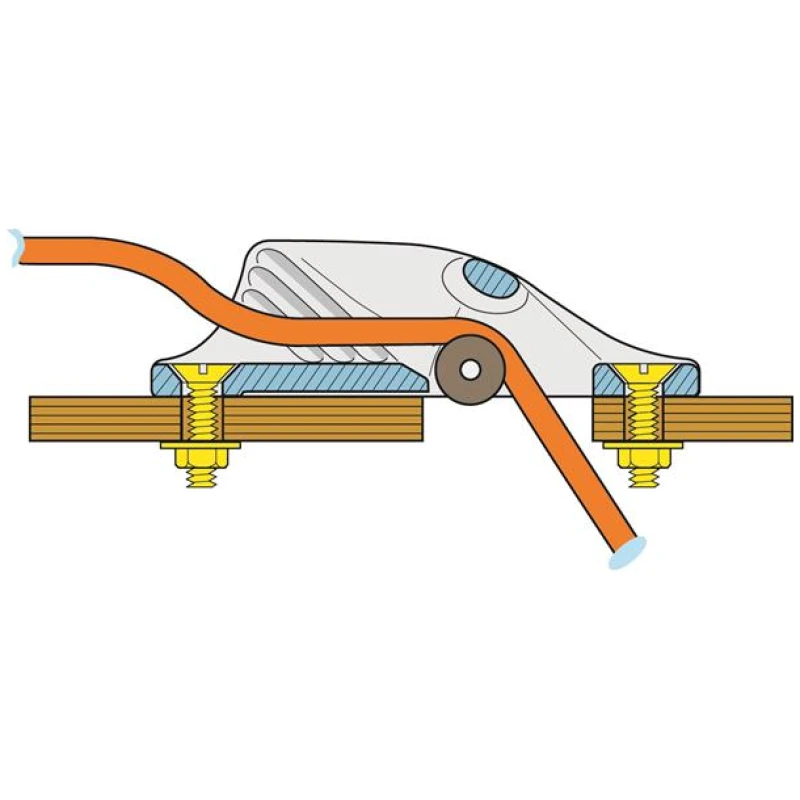

The bottom roller of the Clamcleat® CL230 allows ropes to enter the cleat from below. Ideal for bringing a rope through a surface.  Can also be rigged on a rope for 1:1 or 2:1 advantage.

CL230 is ideal for through-deck and through-mast applications.  Images show it being used for Cunningham and Kicker controls on an International 14 dinghy. Also for tensioning the sunshade on yachts and powerboats, where the dark grey CL230AN looks good on carbon fibre poles. Allows a round hole to be drilled for the rope.

Rope Diameter 3 – 6mm
Material Aluminium & Nylon
Hole Centres 66mm
Length 82mm ; Width 18mm ; Height 23mm
Bolt Size M5 ; Screw Size 4.8
Weight 35gms
